Hộp nối dây 100x100x50mm Nanoco NPA10050V: Complete Guide
2025
Junction boxes are essential components in electrical
installations, providing secure housing for wire connections. Among various options
available in the market, the Nanoco NPA10050V 100x100x50mm
junction box stands out as a reliable choice for professionals
and DIY enthusiasts alike. This comprehensive guide explores everything you
need to know about this versatile electrical accessory.
What is the Nanoco NPA10050V Junction Box?

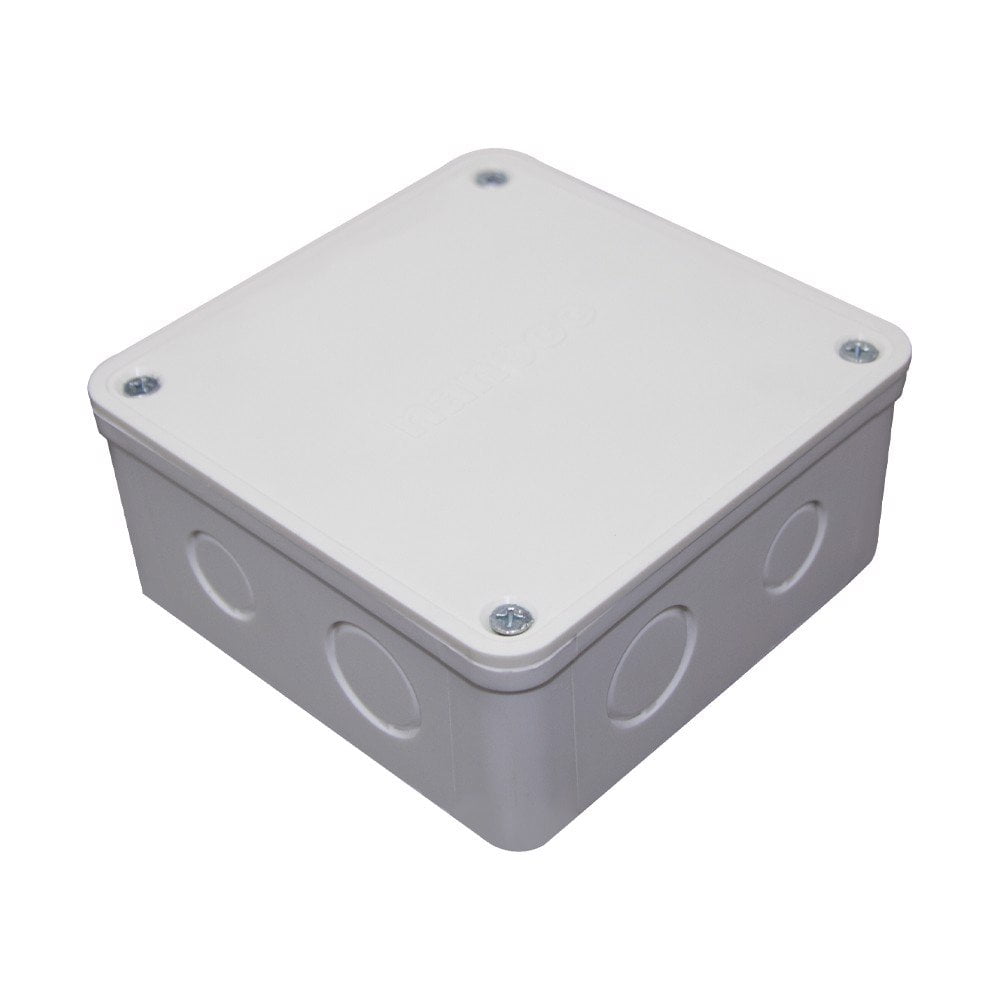

The Nanoco NPA10050V is a
high-quality 100x100x50mm junction box designed for electrical wiring
connections in both residential and commercial applications. Manufactured by
Nanoco, a trusted name in electrical accessories, this junction box offers
excellent protection for wire connections against environmental
factors.
With dimensions of 100mm x 100mm x
50mm, this box provides ample space for multiple wire
connections while maintaining a compact profile. The balanced size makes it
suitable for various installation scenarios where secure wire connections
need protection.
“Proper junction box selection is critical for electrical safety and
installation longevity. The right dimensions ensure adequate space for wire
connections without cramping.” – Electrical Engineering
Association
Key Features and Specifications
The Nanoco NPA10050V junction box
comes with several noteworthy features that make it a preferred choice among
electrical professionals. Made from high-grade flame-retardant PVC material,
it offers excellent durability and resistance against impact, chemicals, and
extreme temperatures.
The box provides an IP65 protection
rating, ensuring dust-tight construction and protection
against water jets from any direction. This makes it suitable for both indoor
and outdoor installations where moisture or dust exposure is a concern.
- Dimensions: 100mm x 100mm x
50mm - Material: Flame-retardant
PVC - Color: Light
gray - Protection rating:
IP65 - Temperature resistance: -25°C
to 60°C - Knockouts: Multiple pre-formed
entry points
Installation Guide for Nanoco NPA10050V
Installing the Nanoco NPA10050V junction
box is straightforward, even for those with limited
experience. Begin by selecting an appropriate location that allows easy
access for future maintenance while keeping aesthetic considerations in
mind.
Secure the box to the mounting surface using the provided fixing
holes. For wall mounting, use appropriate screws and anchors depending on the
wall material to ensure stability.
- Position the junction
box and mark the fixing holes - Drill holes at the
marked positions - Insert wall anchors if
mounting on concrete or brick - Secure the box with
screws - Remove appropriate
knockouts for cable entry - Insert cable glands or
grommets in the openings - Route cables and make
connections - Secure the cover with the
provided screws
Applications and Uses
The Nanoco NPA10050V junction box
finds applications across diverse electrical installation scenarios. In residential
settings, it’s commonly used for lighting circuits, power outlets, and
connecting electrical appliances.
For commercial and industrial environments, this junction box
serves as a connection point for control
systems, motors, and power distribution networks. The versatility
of the NPA10050V makes it suitable for both basic and complex wiring
requirements.
Common Applications Include:
The Nanoco junction box is frequently
used in lighting system installations where multiple connections need to be
housed safely. It provides a secure enclosure for connecting main power lines
to multiple light fixtures, especially in ceiling
installations.
In outdoor applications, the IP65
rating makes it ideal for garden lighting, security cameras,
and other weather-exposed electrical connections. The moisture resistance
ensures long-term reliability even in humid or rainy
conditions.
For industrial settings, the box serves as a connection point for
motor
control systems like those using LS contactors
MC-75a, MC-85a, and MC-100a. The spacious interior
accommodates larger gauge wires commonly used in these
applications.
Comparing Nanoco NPA10050V with Other Junction
Boxes
When selecting a junction box, comparing available options helps
ensure you choose the right product for your specific needs. The
Nanoco NPA10050V offers several advantages over
competing products in the same category.
Unlike standard junction boxes with lower IP ratings, the
NPA10050V provides superior protection against environmental factors. This
enhanced protection extends the lifespan of electrical connections and
reduces maintenance requirements.
| Feature | Nanoco NPA10050V |
Standard Junction Boxes |
Premium Alternatives |
|---|---|---|---|
| Dimensions | 100x100x50mm | Varying sizes | Similar or larger |
| IP Rating |
IP65 | IP54 or lower |
IP65-IP68 |
| Material | Flame-retardant PVC |
Standard PVC |
Metal or reinforced plastics |
| Price Range | Midrange | Lower | Higher |
| Durability | High | Moderate | Very high |
Maintenance and Troubleshooting
Regular inspection of the Nanoco
NPA10050V junction box ensures continued performance and safety. Check for
signs of water ingress, cracks, or discoloration that might indicate
compromised integrity.
Ensure all cable glands and screws remain properly tightened as
vibration and temperature changes can cause loosening over time. If
condensation appears inside the box, verify that all seals are intact and
consider adding silica gel packets to absorb moisture.
Common Issues and Solutions:
If you notice loose connections within the junction box,
immediately turn off power and retighten terminal screws. Loose connections
can lead to arcing and potential fire hazards if left
unaddressed.
For damaged cable entries or knockouts, specialized sealing
compounds can restore the box’s waterproof integrity. In severe cases of
damage to the box itself, replacement is recommended rather than attempting
repairs.
Safety Considerations When Using Junction Boxes
Electrical safety should always be
the primary concern when working with junction boxes. Always disconnect power
before opening the NPA10050V box or making any changes to the connections
within.
Follow local electrical codes and regulations regarding wire
gauges, connection methods, and installation practices. Improper installation
can lead to serious safety hazards including electrical shocks and
fires.
When using the junction box with higher current applications like
motor controls using LS contactors MC-75a, MC-85a, and
MC-100a, ensure that the wire gauge is appropriate for the
current rating. Undersized wires can overheat and create fire hazards.
Where to Purchase Nanoco NPA10050V
The Nanoco NPA10050V junction box is
available through various electrical supply retailers and online
marketplaces. Authorized distributors often provide guarantees of
authenticity and product support.
Price ranges typically fall between 50,000 to 75,000 VND per unit,
with bulk discounts available for larger orders. When comparing prices,
consider additional factors like warranty periods and after-sales
support.
Compatible Accessories and Add-ons
Several accessories can enhance the functionality of your
Nanoco NPA10050V junction box. Cable glands of
various sizes ensure proper sealing around cables entering the enclosure,
maintaining the IP65 rating integrity.
Terminal blocks designed for the 100x100x50mm form factor make
wiring organization more efficient and secure. These accessories save
installation time and improve the overall safety of electrical
connections.
Frequently Asked Questions (FAQ)
Is the Nanoco NPA10050V
suitable for outdoor installation?
Yes, with an
IP65 protection rating, the NPA10050V junction
box is suitable for outdoor installations as it provides protection against
dust and water jets from any direction.
What is the maximum number of cables that can enter this junction
box?
The box features multiple knockout options, typically allowing 6-8
cable entries depending on cable diameter. Always ensure proper sealing with
appropriate cable glands.
Can I use the Nanoco NPA10050V for motor control
applications?
Yes, the box is suitable for motor control applications, including
those using LS contactors MC-75a, MC-85a, and
MC-100a, provided the wire gauge is appropriate for the
current load.
What is the temperature range this junction box can
withstand?
The Nanoco NPA10050V can operate reliably in temperatures ranging
from -25°C to 60°C, making it suitable for most environmental conditions in
Vietnam.
Is the junction box compliant with electrical safety
standards?
Yes, the NPA10050V complies with IEC standards for electrical
enclosures and is manufactured according to international safety
requirements.
Conclusion
The Nanoco NPA10050V 100x100x50mm junction
box represents an excellent balance of quality, protection,
and value for electrical installations. Its versatile design and robust
construction make it suitable for diverse applications across residential,
commercial, and light industrial settings.
By choosing this reliable junction box, you ensure proper
protection for electrical connections while maintaining compliance with
safety standards. Whether for new installations or upgrading existing
systems, the NPA10050V delivers consistent performance and peace of
mind.
For professional electricians and DIY enthusiasts alike,
understanding the features and proper installation of quality components like
the Nanoco NPA10050V contributes to safer and
more reliable electrical systems. Invest in quality components today for
trouble-free operation tomorrow.
